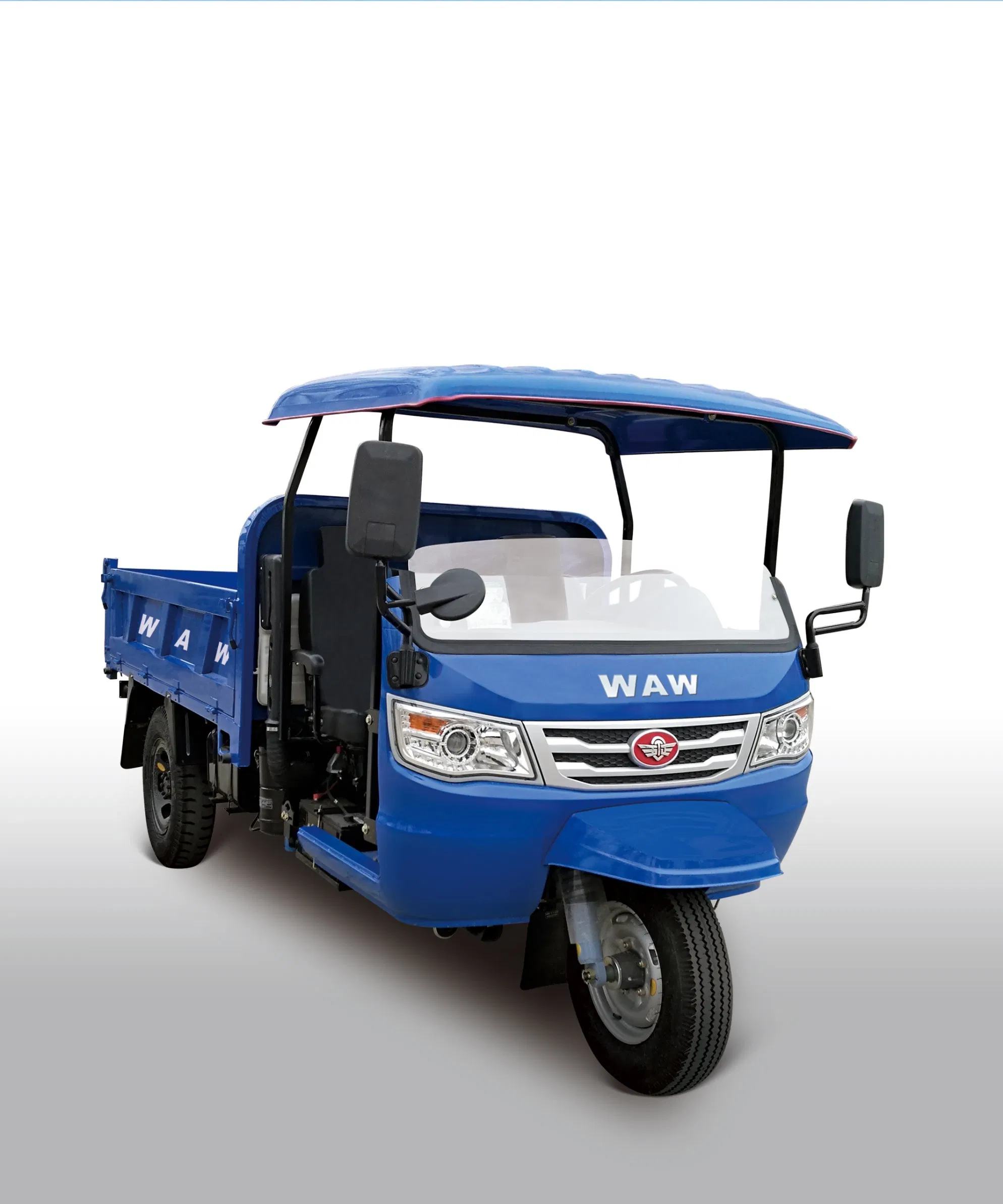

WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

Product Description

Diesel Dump Waw Right Hand Drive 3-Wheel Tricycle

Brand

WUZHENG

Model

WKH3B302

Cabin

AOXIANG 1500A VERSION-semi-enclosed

Main dimensions

Overall dimensions (LxWxH)mm

4050×1580×1950

Dimensions of the cargo body (LxWxH)mm

2350×1500×700

Wheel base (mm)

2680

Wheel track (front/rear) (mm)

1250

Min. ground clearance(mm)

180

Weight

Curb weight (kg)

1220

Rated payload(kg)

2500

Persons in cab (persons)

2

Gross vehicle weight(kg)

3980

Overall performance

Max. speed(km/h)

50

Max. slope of climb(%)

15

Min. turning radius(m)

3.79

Engine

Engine Type

CCZS1115B

Displacement(L)

1.194

Rated horsepower(kg.m/rpm)

22

Steering gear Type

worm gear steering

Service brake and boostingType

oil brake + vacuum boost

Wheels and tyre size

Front wheel

6.00-14

Rear wheel

7.00-16

Electric device

Rated voltage

12V

Battery

CK6-QW-120MF

Packaging &shipping:

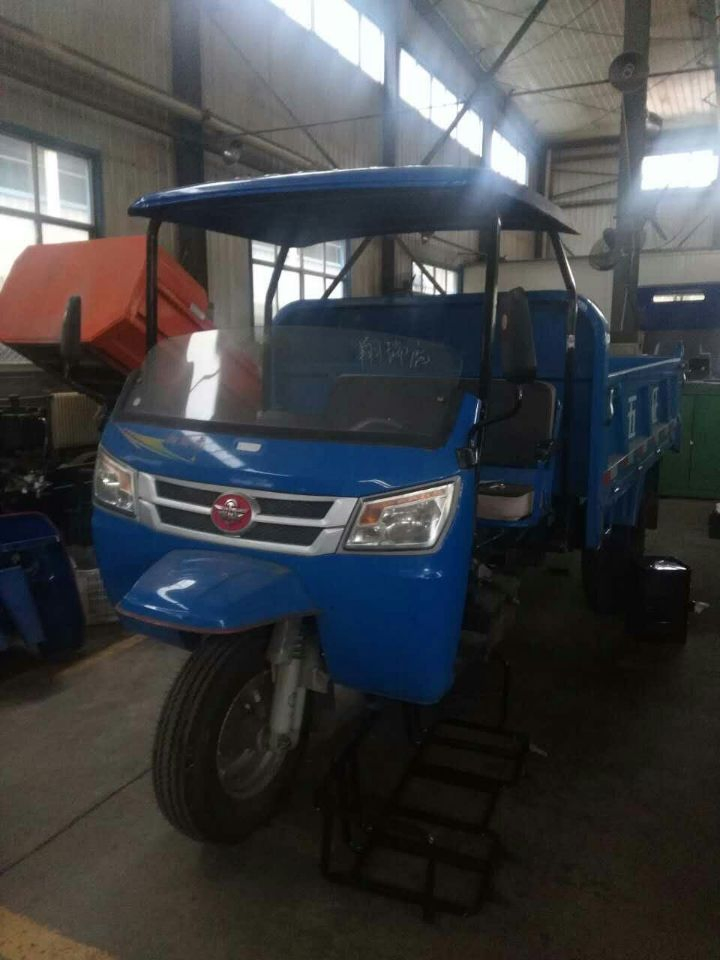

Typically, our three wheeled tricycles take SKD / CKD and carton packaging as shown . If you have any special requirements, welcome to inform in advance.Our services:

FAQ for Wuzheng
Any question on our company, shipping& delivery, billing& payment, dealership or services, please don't hesitate to contact.

WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

Wuzheng Group is one of the key players of machinery engineering in China, originated in 1961. It set up agricultural vehicle business in 1984 and in 2000 was restructured as private ownership.
Nowadays, a diversified industrial pattern of agricultural vehicles, automobiles, agricultural equipment, sanitation equipment and modern agriculture, boosts a coordinated development. 12,000 employees and total assets of 14 billion yuan ground it in reputation and honorable tittles of national, provincial, municipal and industrial levels.
WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

Diversified Industrial Pattern
Wuzheng is committed to innovation-driven industry and product upgrades.
WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

1 Wuzheng Tricycles -Wealth Creator
Since 2010, Multiple functions such as transportation, faming, mining, trading and etc. forge a fame of No.1 sales in agricultural vehicle industry and No.1 brand in the nationwide.
In addition, 3MX, developed by international R&D team, dominates the industry with subversive styling, invention patents, 30 utility model patents, 12 appearance patents, 86 product innovations than in previous 40 years.
2 Feidi Motors- Light Truck Navigator
In 2005, Wuzheng set foot in automobile industry, having cultivated Feidi W, Feidi Q, Feidi WAW, Feidi DITO series
In 2016-2017, DITO family(logistic model, race model, double-row model, medium truck, RV, new-energy model) was launched in succession to cater for diversified market demands.
3 Agricultural Equipment- Booster for Agricultural Modernization
In 2009, Wuzheng renovated it position in senior market after M&A, providing products with high added values and strong competitiveness. RENOMAN of 180~260hp, silage, corn, wheat, and peanut harvesters, tobacco machinery and etc, enrich the product lineup.
4 Sanitation Equipment- Industry Pioneer
On the occasion of sanitation integration and rural reconstruction, Wuzheng has been devoted to providing solution package from collection, disposal to transportation such as hooking-arm model, dumping model, sprinkler, sweeper, waste transfer station and etc.
5 Modern Farming- Participant of international agricultural & livestock
WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

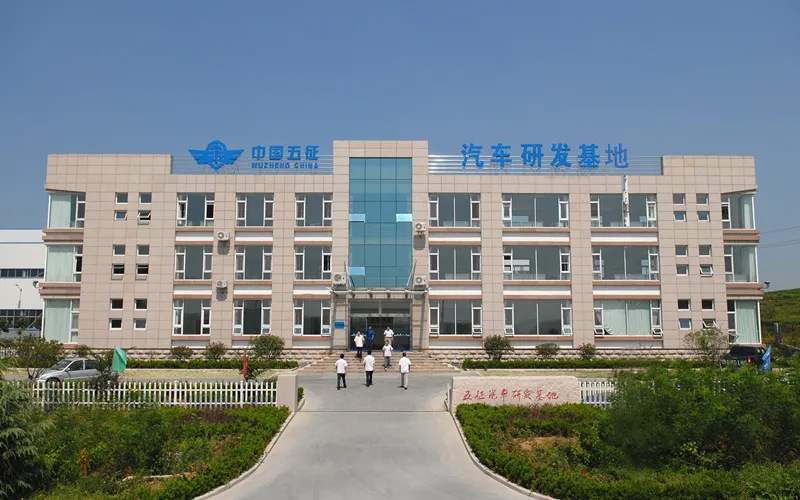

Advanced R & D Analysis and Tests
As a"Corporate technical center", "Industrial design center" "CNAS center"identified by the nation and academician and postdoctoral workstation, Wuzheng undertakes and is engaged in 40+ nationwide technological supporting projects, 630 invention patents and utility model patents and formulation of 60 national and industrial standards and etc.
WUZHENG Diesel Dump Right Hand Drive3 Wheel Motor Tricycles

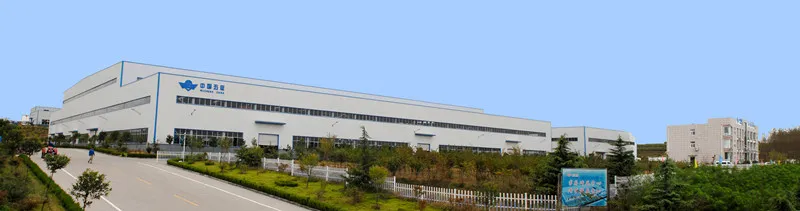

Automation and Intelligent Manufacturing
Modern Management
Wuzheng lays importance onto comprehensive information management such as SAP system, 6σ & lean management methodology, IATF16949 system and so on, in achieving so, Wuzheng recruits HP, Deloitte, Roland Berger consulting of theory, methodologies and tools.
Global Distribution Networks
Up so now, Wuzheng has established 1500+ sales and service channels and 8million+ loyal customers in the worldwide. By 2019, Wuzheng enables a brand value of 5.663 billion yuan. Wuzheng has paved distribution network in 60+ countries, along with the "Belt and Road", Wuzheng will speed up the pace of "Go Global".
