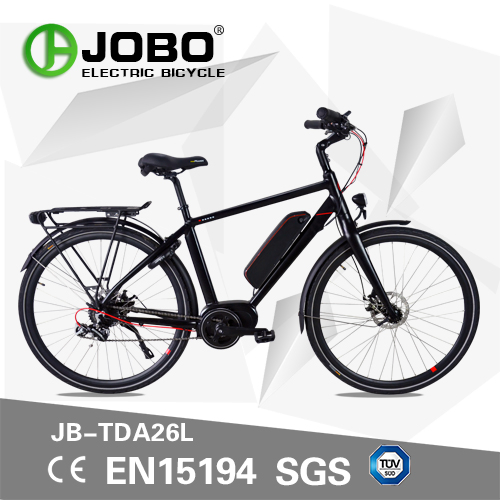

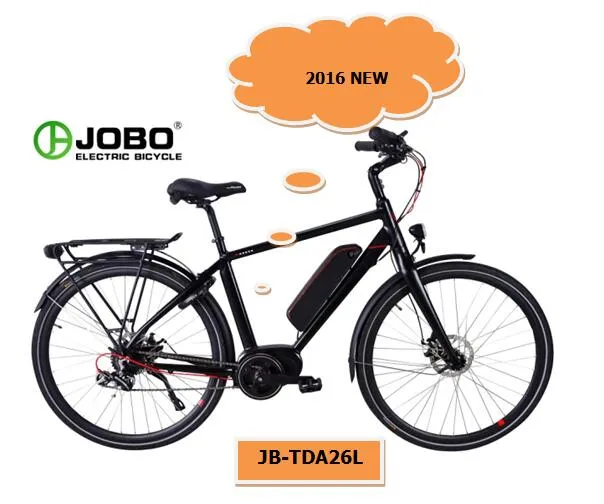

Brushless Motor Bike Electric Moped Pedelec Ebike (JB- TDA26L )
JB-TDA26L is middle motor driven Electric Mountain Bike, with Bafang motor , torque sensor , ideal personal transporter , hot sale electric bike , could be customized manufactured with different components combination. New model for 2016 , Europe style , popular mountain bike for gentleman . .......
Send Inquiry
Product Description
JB-TDA26L is middle motor driven Electric Mountain Bike, with Bafang motor , torque sensor , ideal personal transporter , hot sale electric bike , could be customized manufactured with different components combination. New model for 2016 , Europe style , popular mountain bike for gentleman . .
Contact Information :
Ms. Jane XuTel: 0086 579 83236565
Cell Phone : 0086 182 6790 4568
The following is detail specification
| JB-TDA26L | |||
| Motor | Light weight high speed brushless hub motor | Frame | 6061 aluminium alloy. |
| 24month warranty | Tyres | * Tyre: Tyre:KENDA 27.5×1.95 With Reflective Stripe | |
| Brushless Built-In Motor | Rim | Alloy Double Wall | |
| Front fork | Integration Fork | ||
| 36V/250W Bafang | Front brake | Auriga E-Comp Hydraulic disc brake | |
| Battery | 36V/10.4AH SANYO Battery 0.26*40 | Rear brake | Auriga E-Comp Hydraulic disc brakee |
| Speed gears | Shimano 8 Speed Gears | ||
| 24 month quality warranty | Rear derailleur | SHIMANO Tourney +guider(Acera available) | |
| PAS | Intelligent pedal assistant system +5 Levels speed Bafang LCD Display | Handlebar / grip | ZOOM Brand |
| Controller | intelligent bruhsless. 12 month warranty | Stem | ZOOM Brand,Foldable Stem |
| Charger | AC 100V -240V smart charger | Brake lever | Tektro Brand |
| Charging time: 4 to 6 hours 12 month warranty | Chain | Rust resistant chain. | |
| Throttle | Can use Throttle with Pas or Pas only | Chain wheel | 42-44-48-52T ,al alloy crank. |
| Performance | Mudguard | PVC | |
| Max speed | 25 to 38km/h | Rear rack | NA |
| Range | 40-45 kms | Saddle | VELO Saddle,alloy Suspension |
| Seat post | Foldable HS-6006 | ||
| Max load | 120 kgs | Pedal | Wellgo |
| Net weight | 25.0kgs | Lighting | LED Headlight And Taillight |
| N.W / G. W | 27 kgs /30 kgs | Normal paint color | Any color is available |
| container load | 80 pcs/20GP,170 pcs/ 40HQ | Normal Packing size | 155X26X74CM special for exporting |

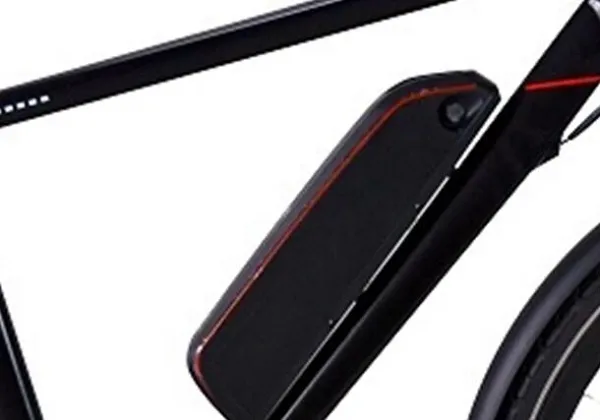

BATTERY
Standard Lithium-ion 36V10.4Ah with upgrade to maximum 36V11.6Ah Samsung.
Autonomy 30-50Km depending on the rider, road climbing degree and PAS selected.
Available cells brand PANASONIC or SAMSUNG.

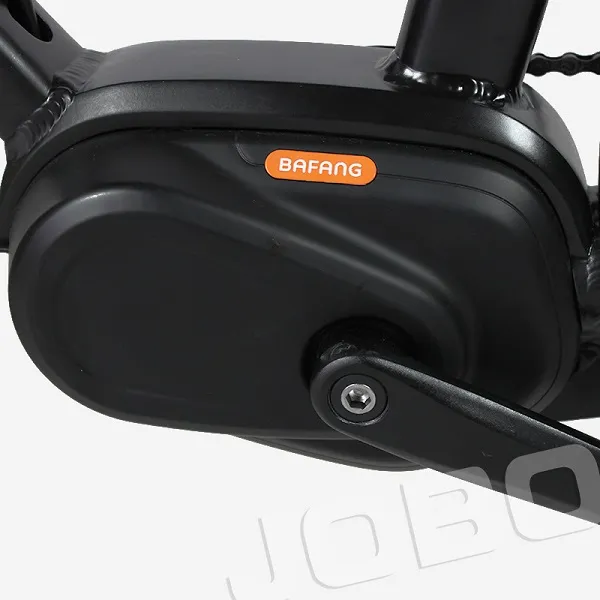

MOTOR
-Last generation Bafang MAX mid drive system
-Integrated motor plug, for a fast and easy replacement of the complete rear motor wheel in case of necessity.
- Gear sensor available

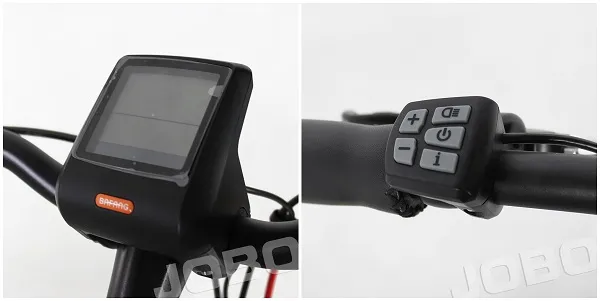

DISPLAY
Bafang LCD display .
- 9 levels of PAS to be selected
- Speed available at request
- Battery indicator.
- Speedmeter.

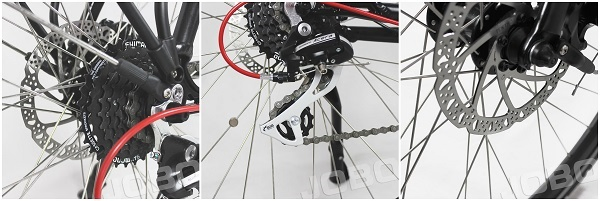

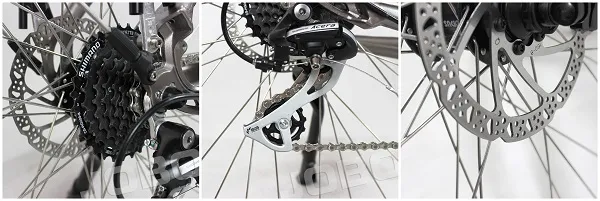

SHIMANO gear and disc brake
Model ACERA 8 gears.
Derailleur protector included.
On request all the series Shimano are available.

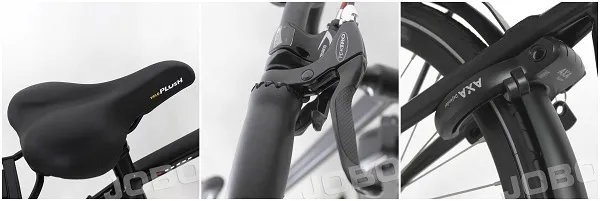

Comfirtable Velo saddle , Tektro hand brake , safer and convinient lock
