Lightweight 29" Bafang 500W MID-Drive Aluminum Electric Bike Frame
Lightweight 29" Bafang 500W Mid-Drive Aluminum Electric Bike Frame Features:1) Riding Style: Hardtail Trail/Am E-Bike Frame,Slope Headtube Angle 67 degree with Fork Appicable: 120-160mm Applicable.2) Motor Applicable: Bafang M600/G521 Mid-Drive Motor. Batter Box: Hailong 52 cells3) 27.5 Boost W......
Send Inquiry
Product Description

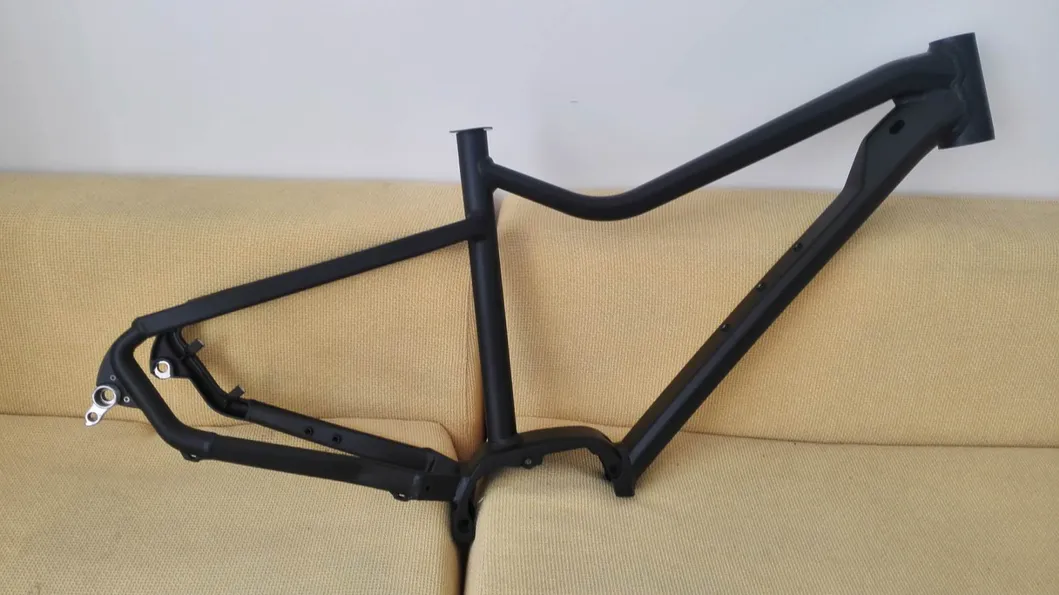

Lightweight 29" Bafang 500W Mid-Drive Aluminum Electric Bike Frame
Features:
1) Riding Style: Hardtail Trail/Am E-Bike Frame,Slope Headtube Angle 67 degree with Fork Appicable: 120-160mm Applicable.
2) Motor Applicable: Bafang M600/G521 Mid-Drive Motor. Batter Box: Hailong 52 cells
3) 27.5 Boost Wheel Size Max. tire 27.5x2.80 or 29x2.35 intensified with Forced Yoke.
Wide Tire increases the riding stablitity.
4) Bafang Motor and Battery Pack or Box can be supplied with the frame for easy assembly.
5) Warranty: 2 years/24 months.

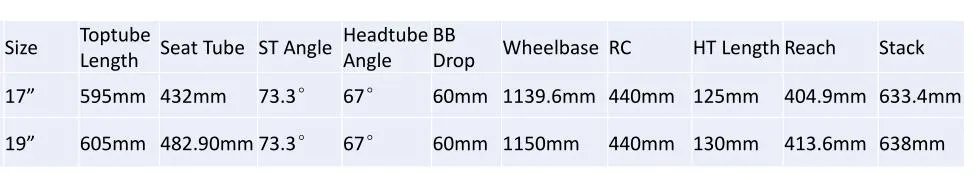

Technical Data:
| Product | Bafang M600 500w Mid-Drive Ebike Frame |
| Model: | LDE6020 |
| Materials | Aluminum Alloy 6061, T4 &T6 Heat treatment |
| Wheel Size | 27.5" Boost,29er |
| Motor | Bafang M600 500w mid-drive motor |
| Battery | Hailong 52 cells |
| Sizes available | all popular sizes(15,17,19,21") |
| Weight | 2700 grams( 17") |
| Dropout | 148x12 thru-axle |
| Max. Tire | 27.5x2.80 or 29x2.35 |
| Headset | Tapered(44-56mm) |
| Routing | Inner Cable routing |
| Head tube angle | 67 degree |
| ChainStay | 440mm |
| Brake | Disc (post mount) |
| Seatpost | 30.9 mm |
| Type | Hardtail Trail/Enduro E-bike |
| OEM | Acceptable |
| Warranty | 2 years (24 months) |
Terms & Conditions:
Warranty: 2 years (All Frames have VIN number)
Packing: 4 units/Carton
Lead Time: 60 days after order confirmation.
Payment Terms: 50% deposit and balance to be paid before shipment.
Sample Order: Acceptable
MOQ: 50 units.
Customized Painting: Acceptable.
