Aluminum Mountain Bicycle Parts Electric Bike 500W MID-Drive Motor Full Suspension Frame

Product Description

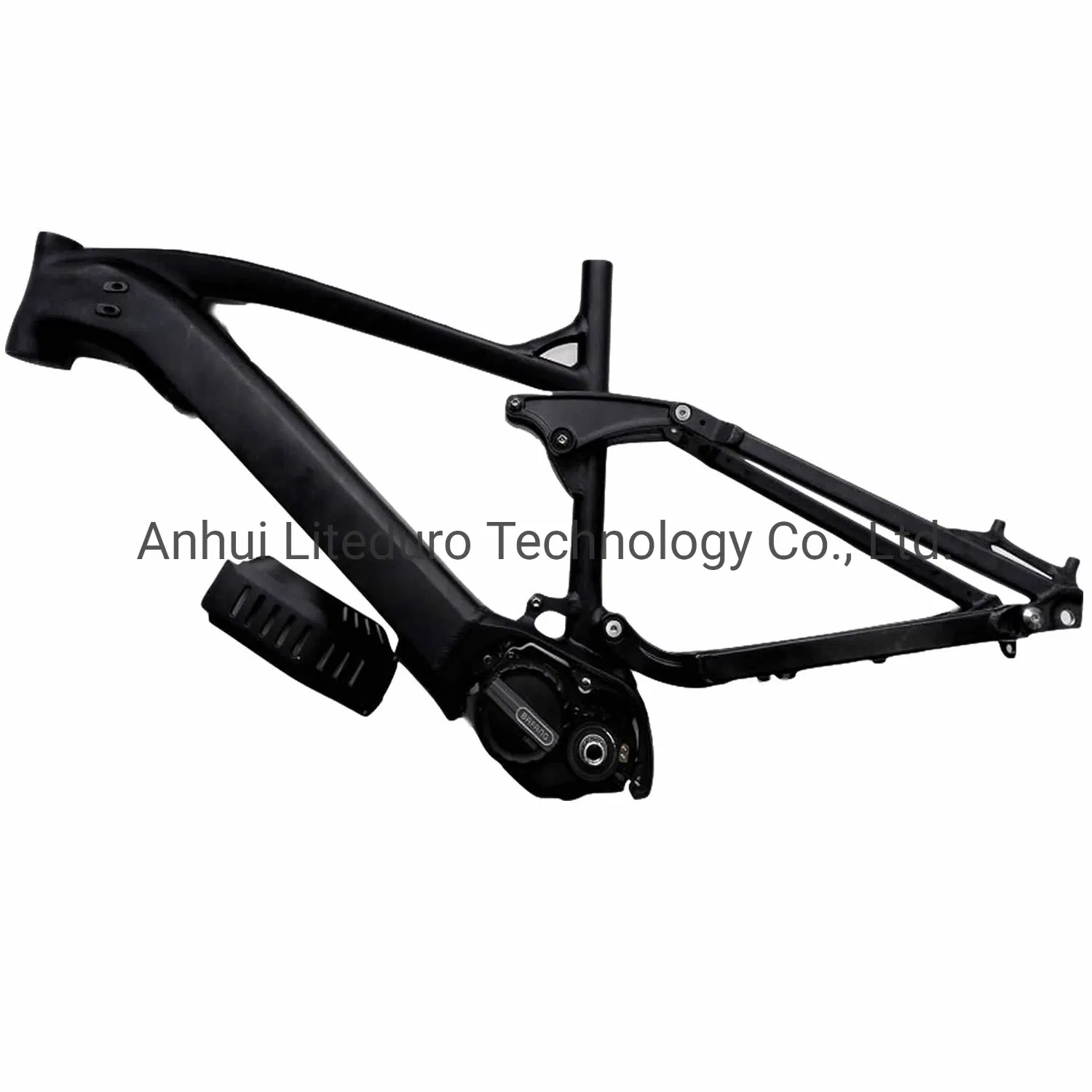

Electric Mountain Bike 500W MID-Drive Motor Full Suspension Frame

Features:

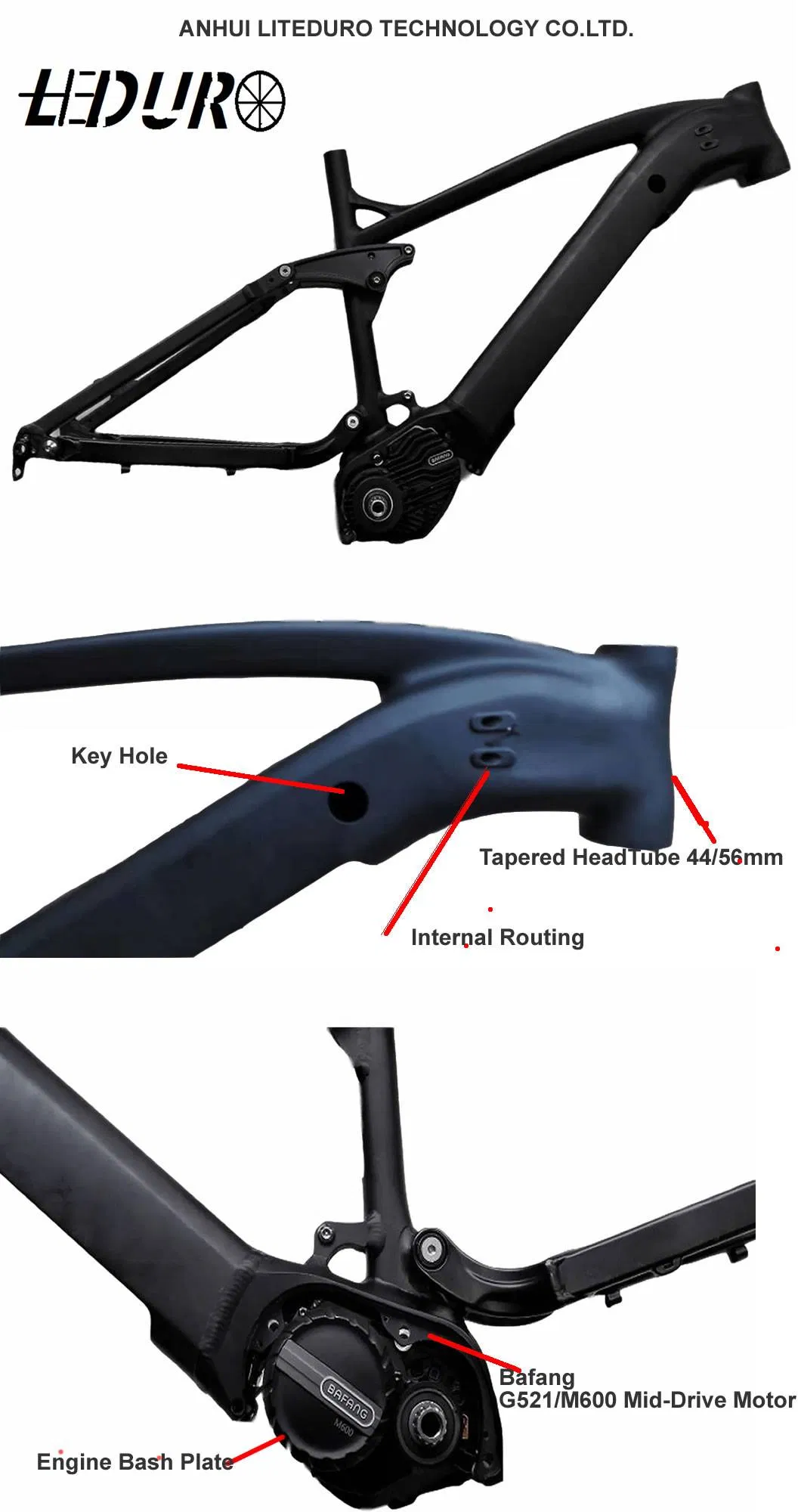

1. 27.5er Boost Aluminum Full Suspension Electric Bike Frame

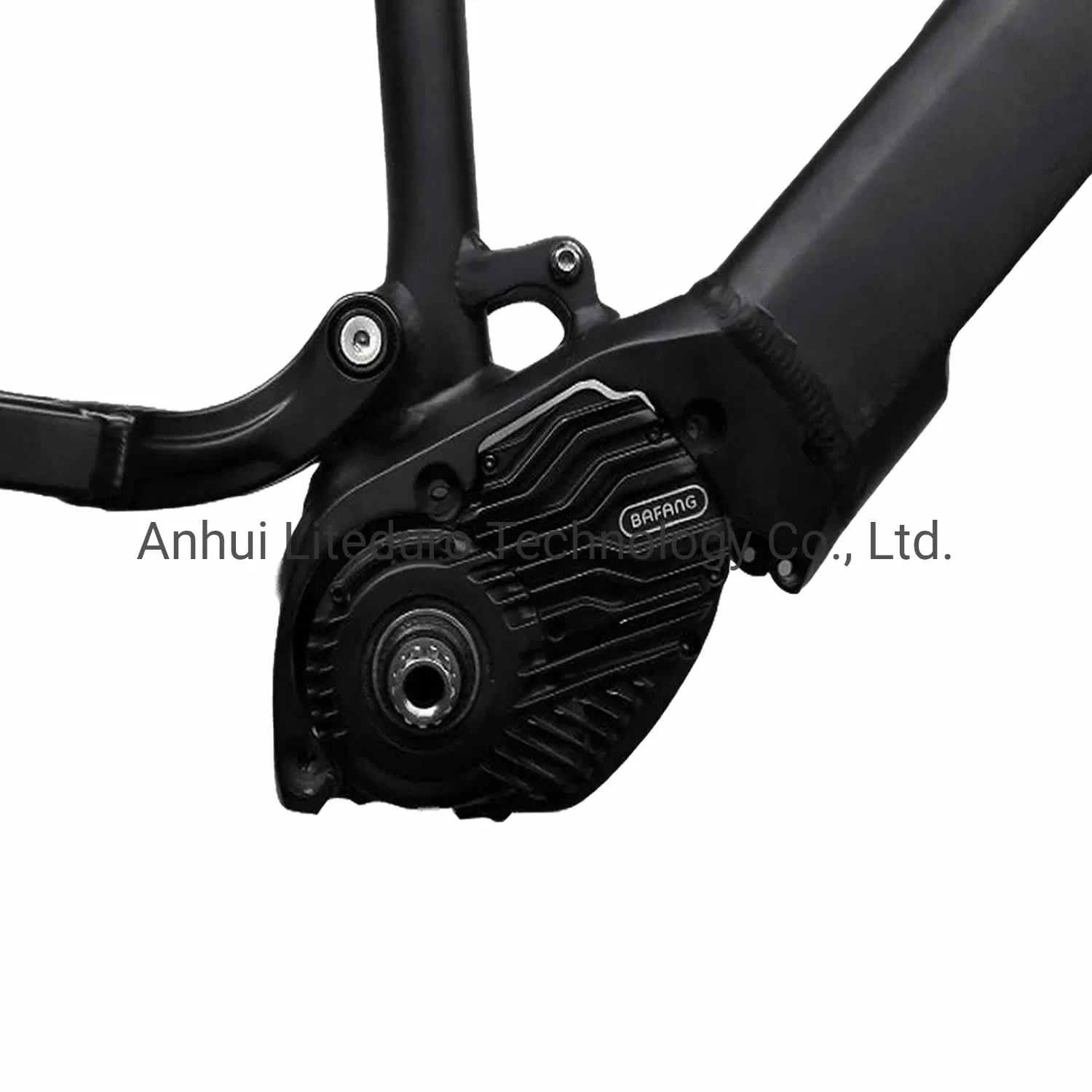

2. Motor: Bafang M600 mid-drive motor. Battery Case Built-in Integrated Downtube
3. Wheel Travel: 150mm, and Shock Size:190x51mm
4. Wheel Size 27.5" Boost with Dropout 148x12mm. Max. tire 27.5x3.00 or 29x2.35
5. Sizes 15.5", 17", 18.5", 20" available.
6. We can supply the frame kits including frame, motor, battery, wheelset, fork and shock etc.

Technical Data:

Product Name	27.5er Boost Bafang M600 Electric Full Suspension Mountain Bike Frame
Model Number	E6065S
Materials Size	Aluminum Alloy 6061, T4&T6 Treatment
Welding	TIG+Flat Welding+Putin
Wheel Size	27.5er Boost
Rear Dropout Size	148x12mm thru-axle
Maximum Tire Size	27.5"x3.00 /29x2.35
Motor Applicable Size	Bafang M600/G521 Mid-Drive Motor, 500W
Battery Size	Bafang BTF03-450, BTF05-600
Headtube Size	Tapered(1-1/8" upper, 1-1/2" lower)
Seat post Size	31.6 mm
Headtube Angle Size	66.5 degree
Wheel Travel Size	150mm
Shock Size	190x 51mm
Available Sizes:	15.5", 17", 18.5",20.5"
Routing	Internal Routing
P	USA. Enduro Premium bearings
Riding Style	Electric AM/Enduro mountain bike
Feature	Large Power, Long Trave Fulll Suspension Bike Frame
OEM	acceptable
ODM	Acceptable
Painting	raw materials or as per customer's painting design
Minimum Order	20 units
Kits	Frame, Motor, Battery, Fork, Shock, Wheelsets etc can be supplied
